How to connect to a monitor and keyboard to your server?

There are two different types of servers that can be used when troubleshooting a SACS server

(Dell or HP).

HP

When trying to connect a monitor to a HP server you will connect the VGA cable into the blue port on the back of the server. In addition, you will connect the USB cable from the USB keyboard into an available USB port on the back of the server. Images are shown below.

VGA cable for a HP server:

USB cable for the USB keyboard:

Front of a HP Server:

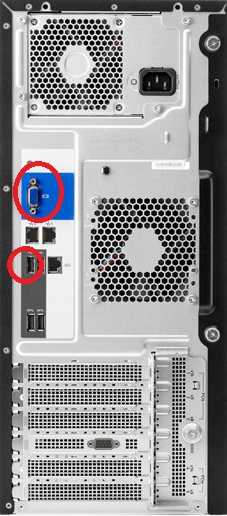

Port locations for the VGA and USB cables on the back of the HP server:

Dell

If you are connecting a monitor to a Dell server you will connect the DisplayPort cable into the DisplayPort connection slot on the back of the Dell server. You will also connect your USB cable from the USB keyboard into a available USB port on the back of the server. Please see the Dell Server images below.

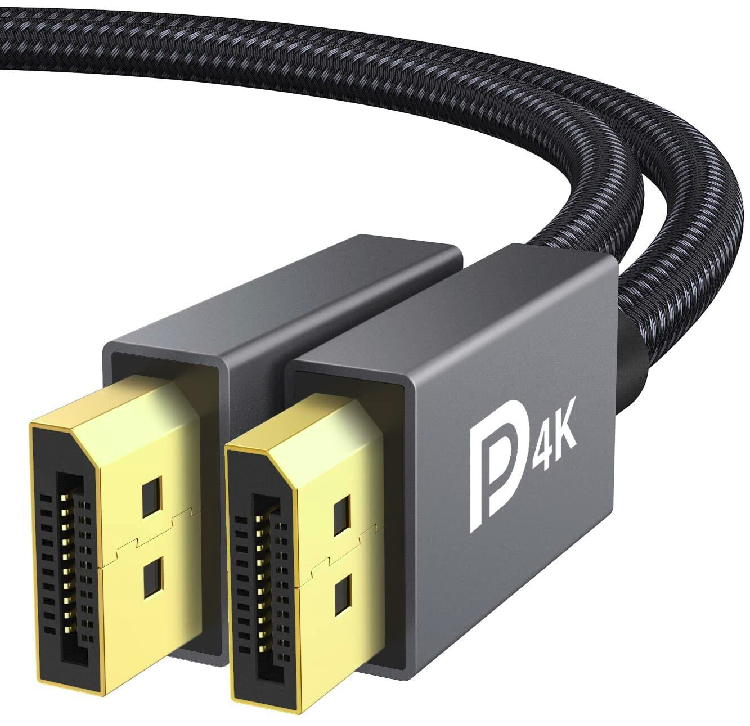

DisplayPort cable for a Dell server:

USB cable for the USB keyboard:

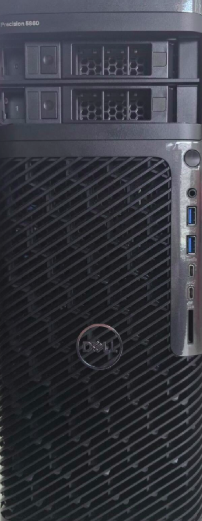

Front of the Dell Server

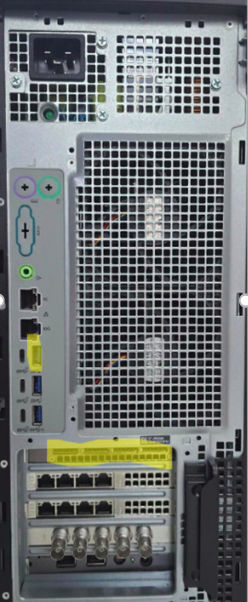

Back of Dell Server:

Top Yellow Highlighted area:

This is where the USB keyboard will connect.

Bottom Yellow Highlighted area:

This will be where the DisplayPort cable will connect.

Restarting Your Server

In order to restart your server, you have to locate the reset button on the front of your server as displayed in the picture below. Press and hold the reset button for around 5 seconds to begin the rebooting process.

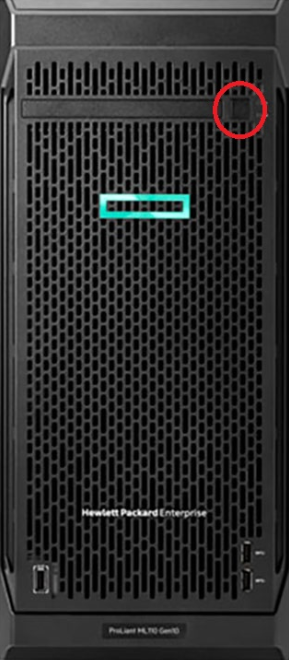

Reset button for a HP Server:

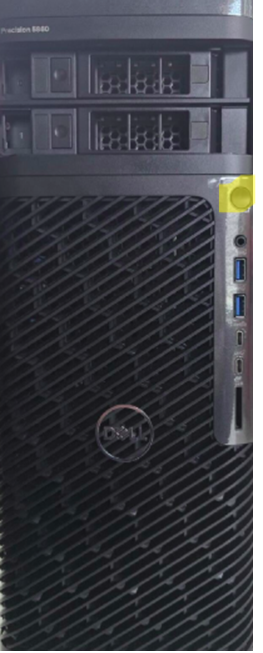

Reset button for a Dell Server (Highlighted in yellow):

After a successful restart of your server, your monitor should display the following:

Friendly Reminder:

Should you monitor display the following message below, this is a disk array issue which you can resolve by using the following article. Disk Array Issue

Restarting the PoE Injector

You can restart your PoE injector by unplugging the power cable as displayed in the picture below. Please leave the device unplugged for 10 seconds before plugging it back in.

After your PoE injector has restarted, all the indicators lights on the top of the device should be solid green. If the lights are not solid green, there is likely an issue with the cabling for the cameras. Please see the information and image below which uses the proper server cable layout.

Server Cable diagram

The following image is a diagram of how your server's cabling should be connected.

Server Diagram Below:

1.) Power Supply

2.) Internet Connection

3.) Synchro Cable

4.) Synchro Power Supply

5.) Camcourt1

6.) Camcourt2

7.) Camcourt3

8.) Scoreboard Camera

9.) Sound Input

Friendly Reminder: If you need any further assistance, please feel free to contact us and we will be more than happy to help!
