Wireless Streaming from the Synergy Automated Camera System

Modified on Wed, 12 Aug at 11:09 PM

This article will allow you to take a live production from the Synergy Automated Camera System and send it into a software platform that is capable of receiving a stream. Please use the steps below to accomplish this task.

1.) Go to https://sportshub.keemotion.com/

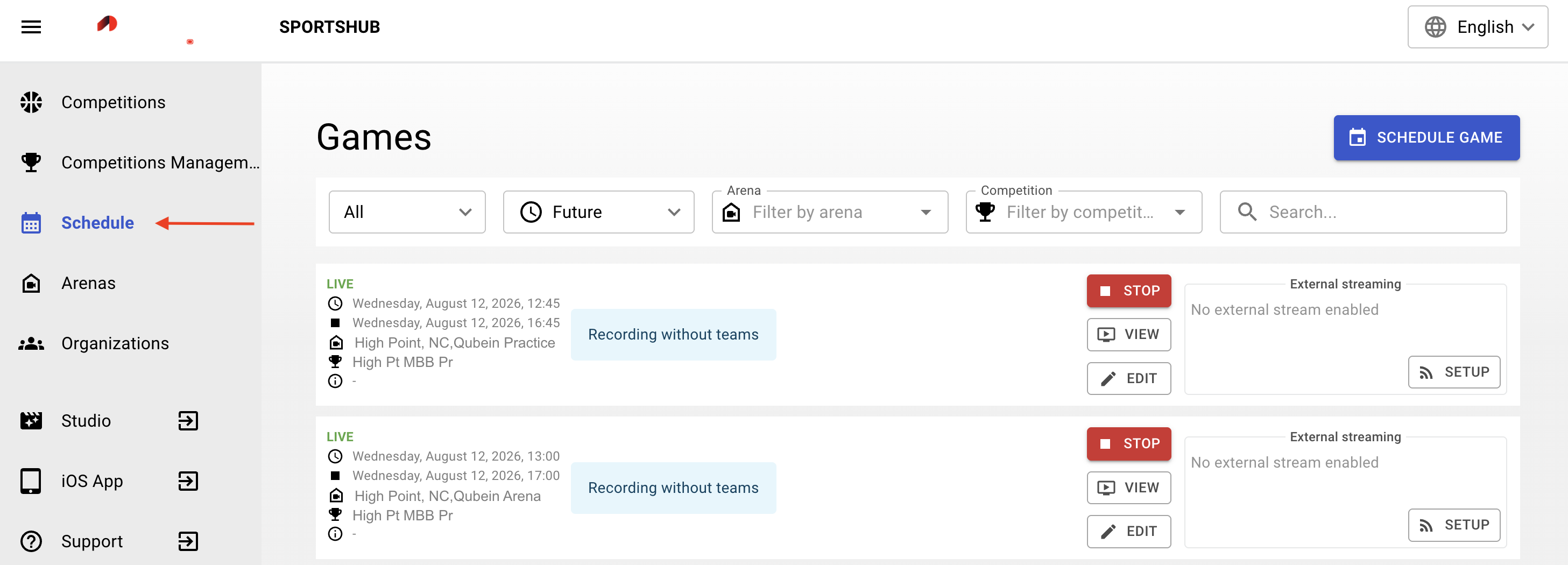

2.) Next, once you are within SportsHub click on the the "Schedule" tab on the left side of the Sportshub menu.

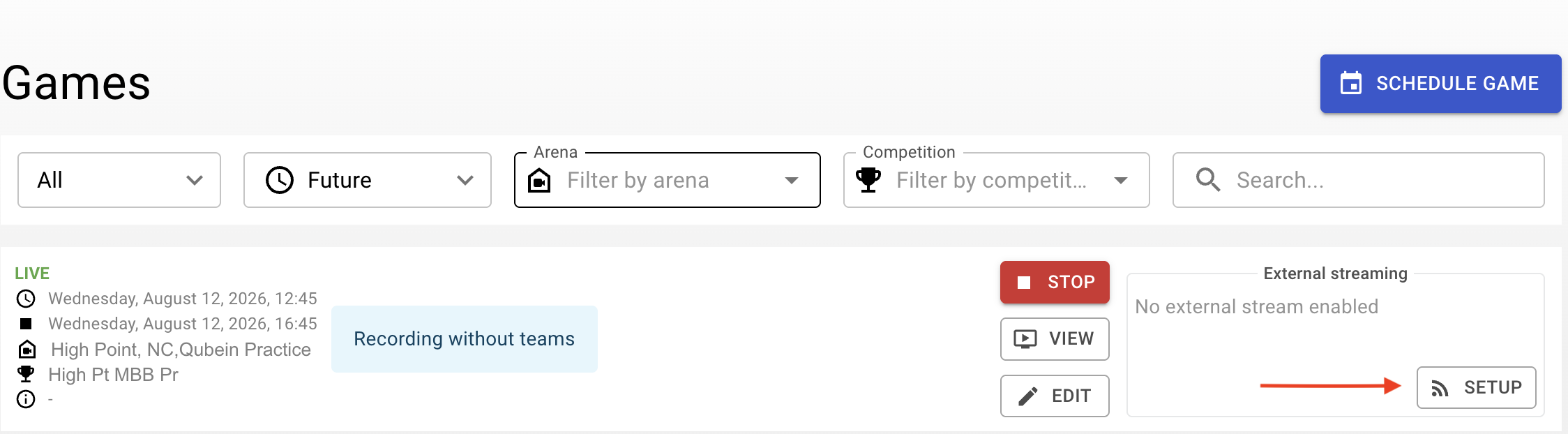

3.) Once within the scheduling tab, find the game with the live recording you are needing to work with and press the "Setup" button on the right side of the SportsHub page.

Friendly Reminder: Please make sure that a production is scheduled before proceeding with step 3. Any scheduled production that is in your list of productions will have a unique streaming link. The streaming link will only become active when your production is live.

Pro-Tip: There are multiple places where you will be able to access your streaming options.

Whenever you see the streaming icon below, no matter what other text you might see with this icon, if you click on the streaming icon button, you will have the ability to access all the streaming options that you will see in the following steps.

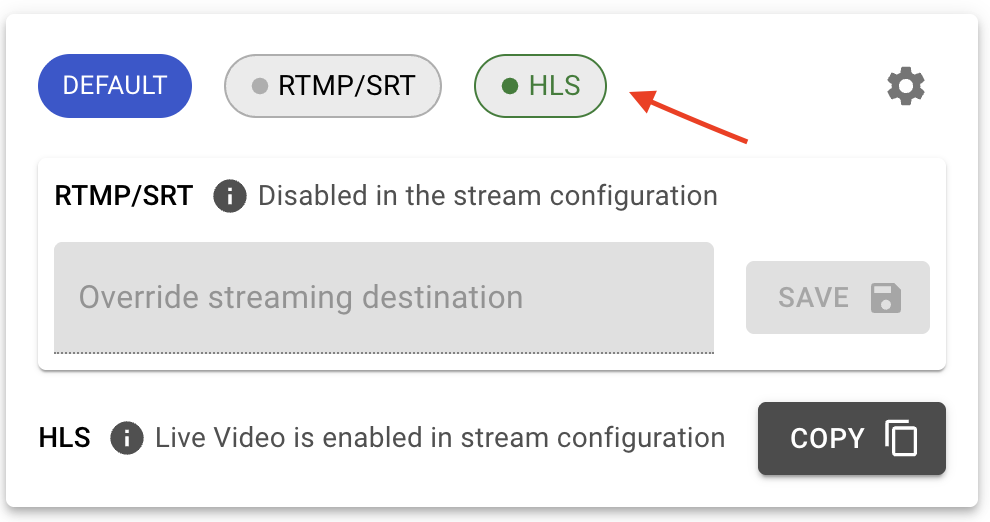

4.) Inside the recording page, you will see a section with each angle labelled. Under each angle there will be a m3u8 link. You can copy and paste that link into any software platform capable of receiving a stream.

Reminder: As mentioned in the reminder for step 3, the m3u8 link will only become active once the production is live and "Green" in color.

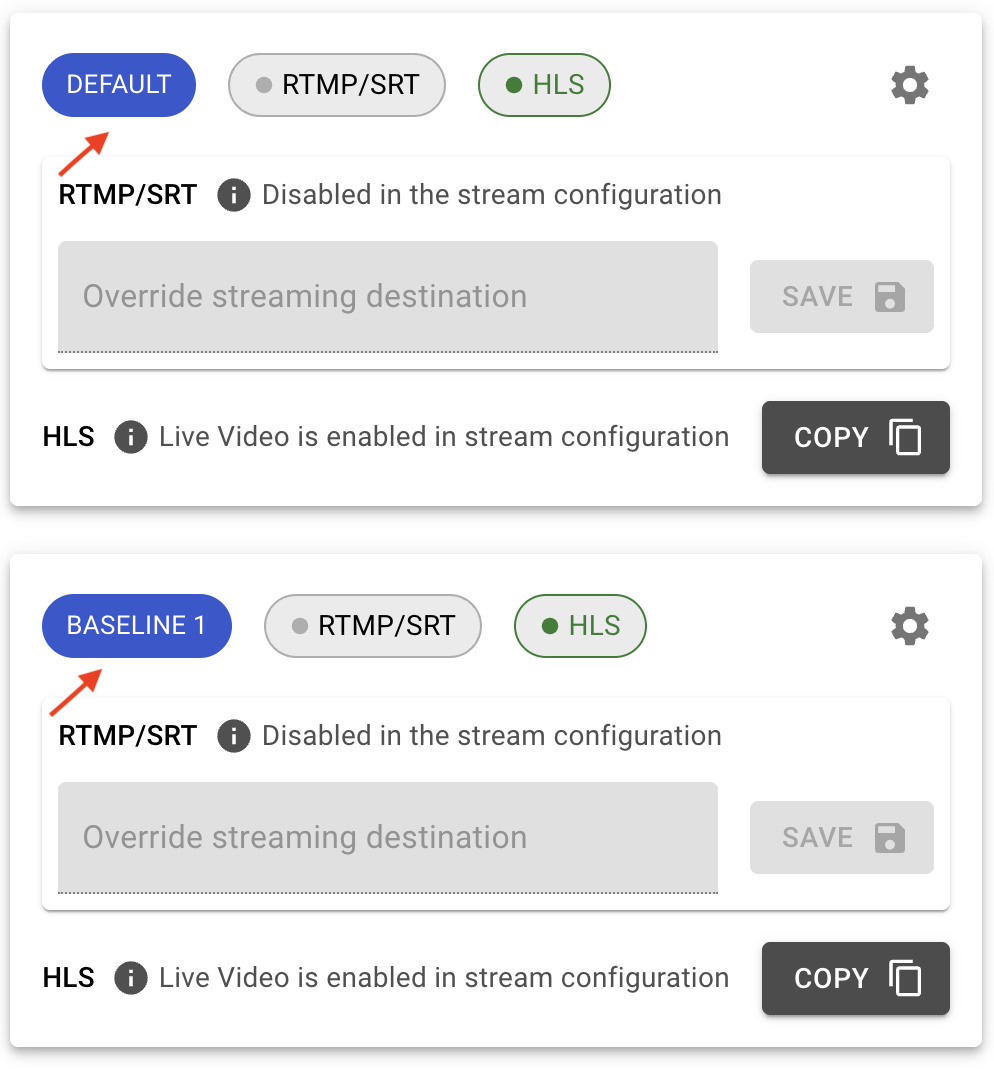

Friendly Reminder: If your system has multiple angles, you will see that there will be a stream labeled for each angle. The system in the image above only has one angle, which is labeled "S0 -Default". This will always be your main feed. However, if there is more than one feed with your additional angles, you will see them labeled after the "S0 - Default", which will be highlighted in grey. Each angle will have a unique m3u8 link that can be copied and pasted into your software platform that has the ability to receive a stream.

Important Note: The m3u8 links that can be copied and pasted are not static. This means that every production you schedule will generate a new unique m3u8 link. You will have to copy the new link for each successive production that you schedule.
